Transformer Parts

• Capacity
• Up to 630A (size-dependent)

• Cooling Type
• Air cooled, passive

• Dimension (L*W*H)
• Varies by model (example: 120 mm x 80 mm x 60 mm)

• Efficiency
• High electrical conductivity, minimal loss

• Frequency (MHz)
• N/A (for AC power, 50-60 Hz typical)

• High Voltage
• Up to 36 kV

• Load Loss
• Negligible due to efficient conductive materials

• Low Voltage
• 1 kV or below

• Material
• Aluminum alloy and copper (bimetallic)

• Operating Temperature
• -20C to +85C

• Phase
• Other, Suitable for single and three-phase systems

• Power Scope
• Applicable for medium and high voltage lines

• Product Type
• Other, Bolted Type 5 Bimetallic Pad Clamp

• Rated Voltage
• Up to 36 kV (depending on specification)

• Standard
• IS/IEC 61238-1 compliant

• Usage
• Electrical power transmission and distribution line connections

• Weight
• Varies with size, approx. 500g - 2.5kg

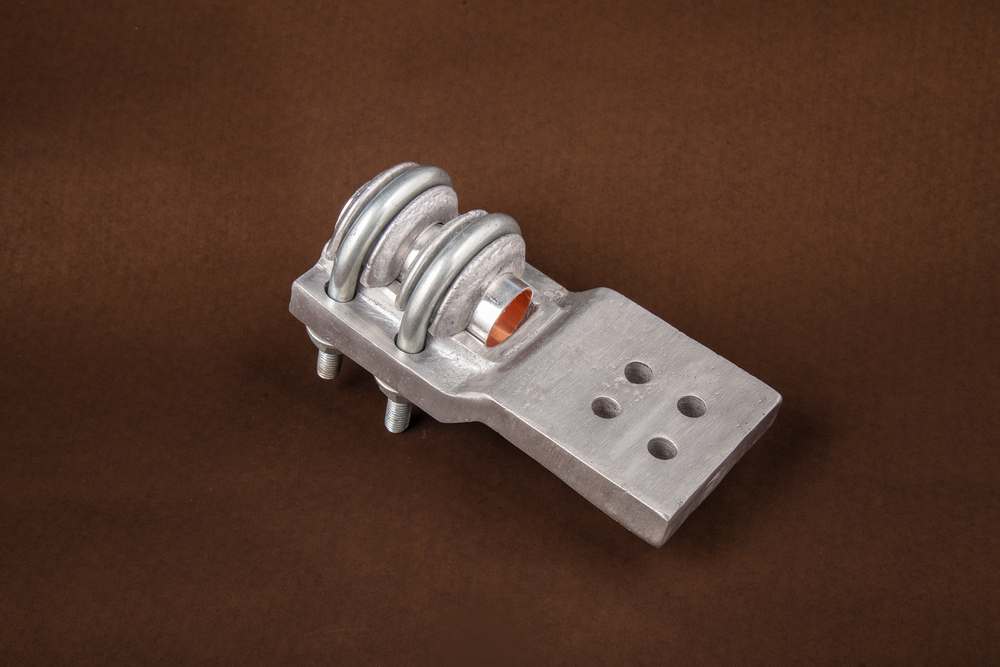

• Capacity
• Supports standard conductor sizes

• Dimension (L*W*H)
• 250 mm x 80 mm x 60 mm

• Efficiency
• High electrical conductivity

• High Voltage
• Up to 33 kV

• Load Loss
• Negligible

• Material
• High-quality aluminium alloy

• Operating Temperature
• -40C to +85C

• Phase
• Other, Three-phase and single-phase compatible

• Power Scope
• Medium to high voltage power lines

• Product Type
• Other, 7 Bolted Type CT 7 Pad Clamp

• Rated Voltage
• Up to 33 kV

• Standard
• IS 5561 or equivalent

• Usage
• Overhead transmission and distribution line connections

• Weight
• Approx. 2.5 kg

• Capacity
• Based on conductor size and application requirements

• Dimension (L*W*H)
• Dimensions vary; typical L ~ 130-180mm, W ~ 40-60mm, H ~ 40-50mm

• Efficiency
• High mechanical and electrical efficiency for long-term service

• Frequency (MHz)
• 50/60 Hz (standard for power systems)

• High Voltage
• Up to 33 kV (refer manufacturer catalogue)

• Load Loss
• Negligible for clamp applications

• Low Voltage
• Can be used on low voltage side of CTs

• Material
• High strength aluminium alloy (pressure die-cast or forged steel also possible depending on manufacturer)

• Operating Temperature
• -25C to +85C

• Phase
• Other, Applicable for single and three-phase systems

• Power Scope
• Suitable for low, medium, and high voltage electrical applications

• Product Type
• Other, 8 Bolted Type CT Clamp

• Rated Voltage
• Suitable for system voltage up to 33 kV (can vary)

• Standard
• Conforms to IS/IEC and other international standards for busbar and conductor clamp fittings

• Usage
• Used for connecting and securing conductors in electrical installations, specifically suitable for current transformer (CT) connections.

• Weight
• Depending on size and model, typically 0.5 to 2 kg

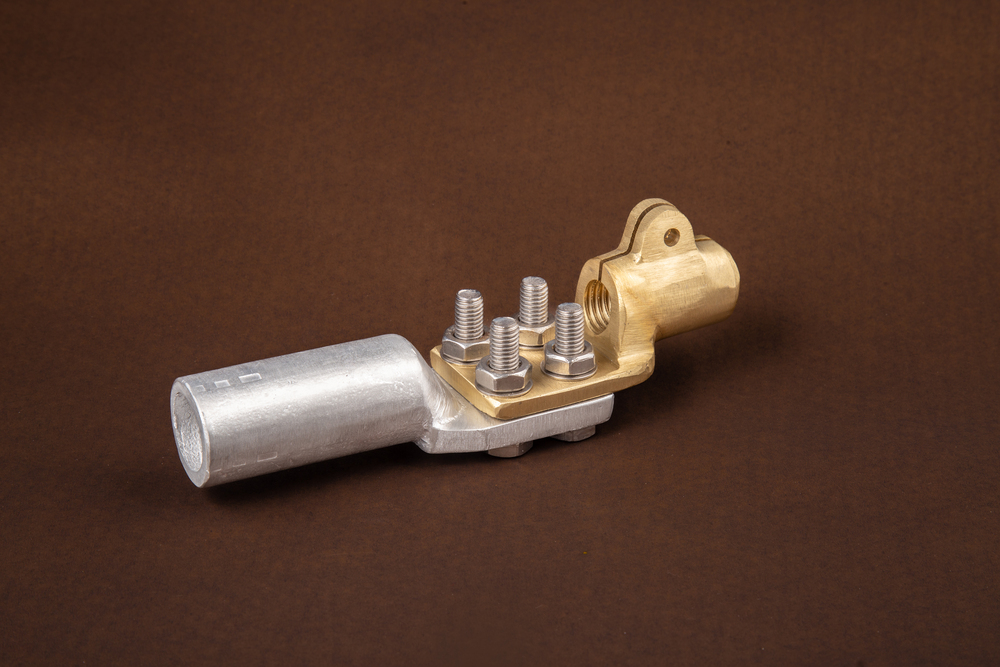

• Dimension (L*W*H)
• Approx. 430 mm length

• High Voltage
• Up to 36 kV (depending on transformer design)

• Material
• Copper Alloy and Aluminium

• Operating Temperature
• -25C to 105C

• Product Type
• Other, Transformer Bushing Clamp Assembly

• Rated Voltage
• Up to 36 kV

• Standard
• IS/IEC 60137 or as per OEM/utility requirement

• Usage
• Used for securing transformer bushings to the transformer tank for electrical connections

• Weight
• Approx. 0.9 to 1.5 kg

• Dimension (L*W*H)
• 170 mm x 120 mm x 80 mm (approximate, varies by manufacturer)

• High Voltage
• Applicable for High Voltage Lines

• Material
• High-strength Aluminium Alloy / Galvanized Iron

• Operating Temperature
• -40C to +85C

• Product Type
• Other, 2 Hole 9 Bolted Type Pad Clamp

• Rated Voltage
• Up to 33 kV

• Standard
• IS 5561 / ASTM / IEC Standard

• Usage
• Overhead Transmission/Distribution Line Conductor Clamping

• Weight
• Approx. 1.6-2.2 kg (Depending on size)

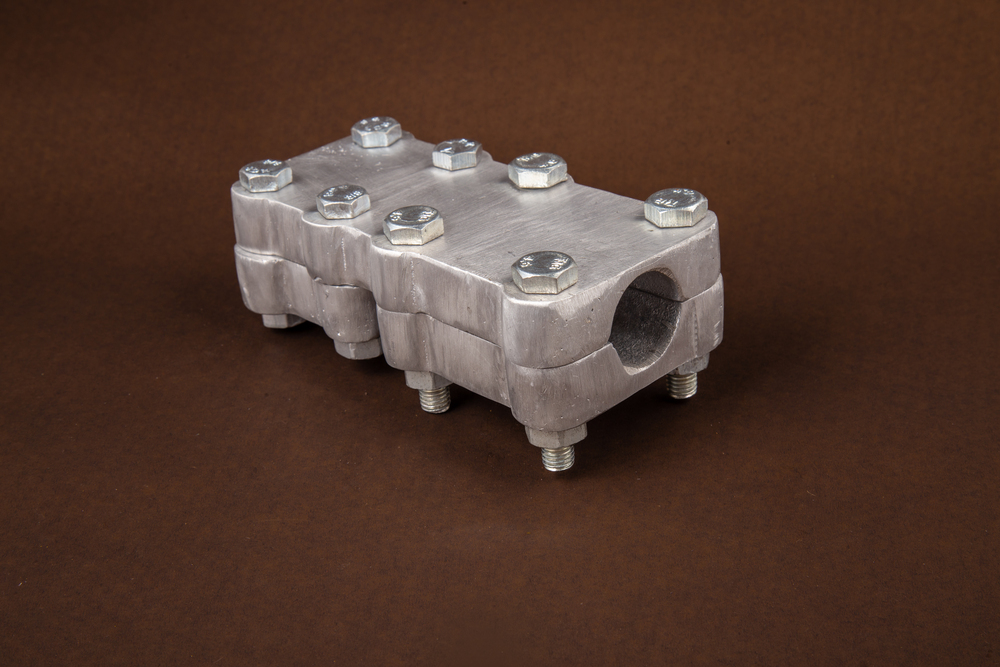

• Dimension (L*W*H)
• 150 mm x 60 mm x 70 mm (approximate)

• Material
• High-strength aluminium alloy

• Operating Temperature
• -20C to 85C

• Product Type
• Other, 6 Bolted CT Clamp

• Rated Voltage
• Up to 1.1 kV

• Standard
• IS/IEC 61238-1

• Usage
• Electrical power distribution, connecting CT (Current Transformer) to busbars/conductors

• Weight
• Approx. 1.2 kg

• Capacity
• High current capacity

• Dimension (L*W*H)
• Approx 100 mm x 30 mm x 10 mm

• Efficiency
• Up to 99.5%

• Frequency (MHz)
• Applicable for both low and high frequency

• High Voltage
• Up to 1.1 kV

• Load Loss
• Negligible

• Low Voltage
• As per application

• Material
• High conductivity Aluminum

• Operating Temperature
• -20C to 80C

• Output
• Electrical connectivity

• Phase
• Other, Single & Three Phase compatible

• Power Scope
• Up to 1000A

• Product Type
• Other, 12 Hole Isolator Connector

• Rated Voltage
• Up to 1.1 kV

• Standard
• IS/IEC Standard compatible

• Usage
• Electrical isolation and connection

• Weight
• Approx. 120 gm

• Capacity
• Suitable for DOG conductor (approx. 100 sq.mm, 7/4.09 mm ACSR)

• Dimension (L*W*H)
• Approx. 105 mm x 80 mm x 60 mm (may vary slightly)

• Efficiency
• Designed for optimal electrical conductivity and mechanical strength

• High Voltage
• Designed for use up to 33 kV systems

• Load Loss
• Negligible, due to high conductivity material used

• Material
• High-strength Aluminum Alloy with Galvanized Steel Bolts & Nuts

• Operating Temperature
• -10C to +60C

• Power Scope
• Medium to High Voltage Power Transmission Lines

• Product Type

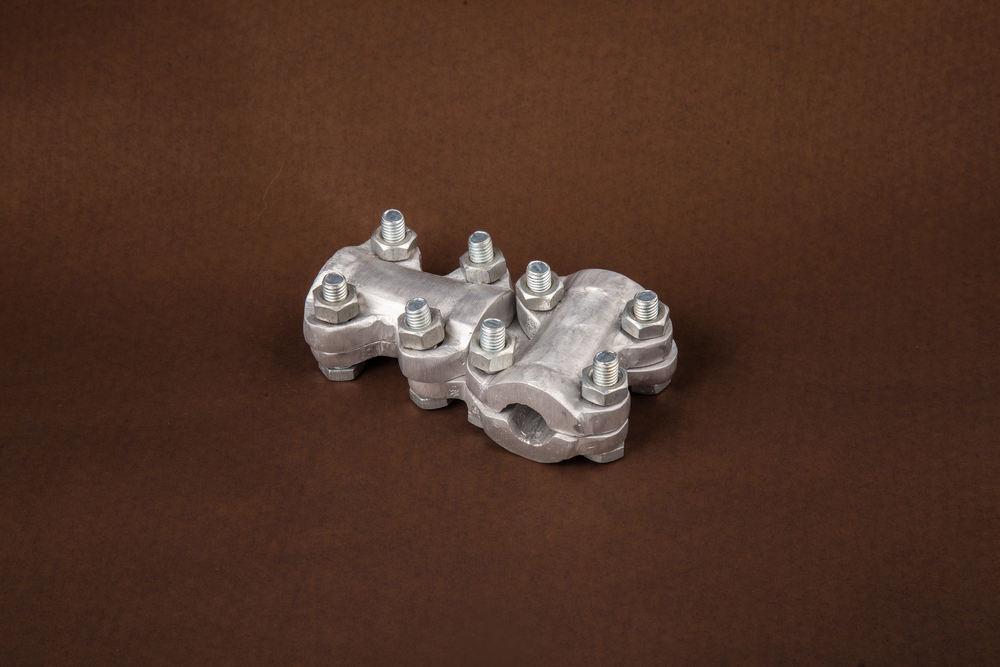

• Other, 10 Bolted Type T Connector

• Rated Voltage
• Up to 33 kV (typical for DOG conductor applications)

• Standard
• IS 5561 / IEC 61284 or equivalent

• Usage
• Used for T-Connections in overhead transmission lines, specifically for DOG (Drake Owl Grosbeak) conductors

• Weight
• Approx. 1.25 kg (may vary based on manufacturer)

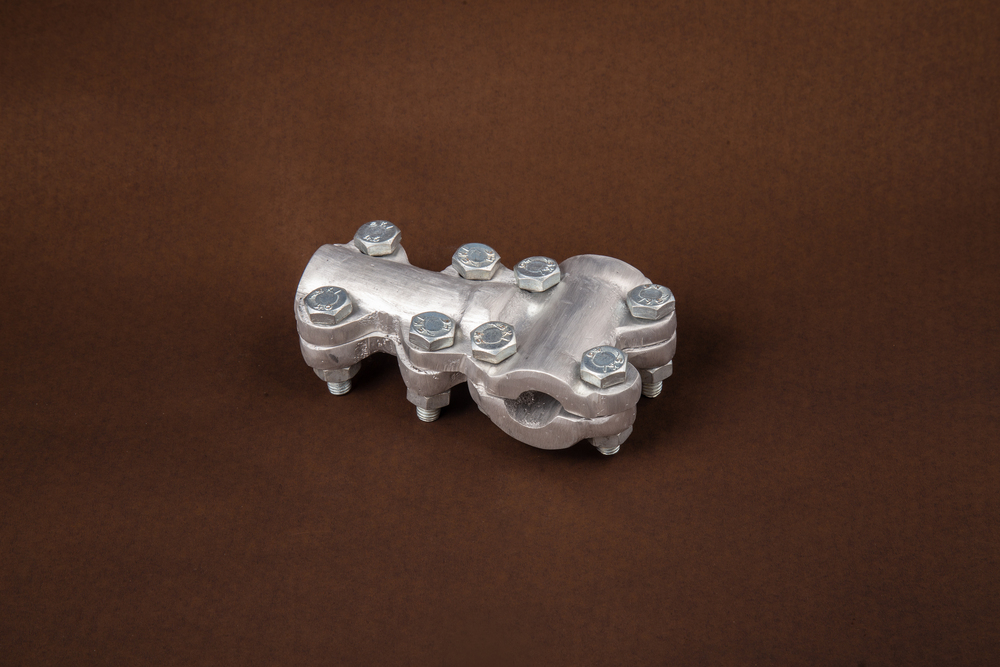

• Capacity
• Suits 0.2 Conductor size

• Dimension (L*W*H)
• Approx. 120mm x 60mm x 50mm (varies by manufacturer)

• Efficiency
• High mechanical and electrical efficiency

• High Voltage
• 33 kV (maximum working)

• Load Loss
• Negligible/Low

• Material
• High-strength Aluminium Alloy

• Operating Temperature
• -20C to +70C

• Phase
• Other, Suitable for Single and Three Phase systems

• Power Scope
• Up to 0.2 Conductor as specified

• Product Type
• Other, Bolted Type T Connector

• Rated Voltage
• Up to 33 kV (depends on installation application)

• Standard
• IS/BS/IEC Standards as applicable

• Usage
• Used for T-off connections in electrical power lines and substations

• Weight
• Approx. 350-600 grams (depending on model)

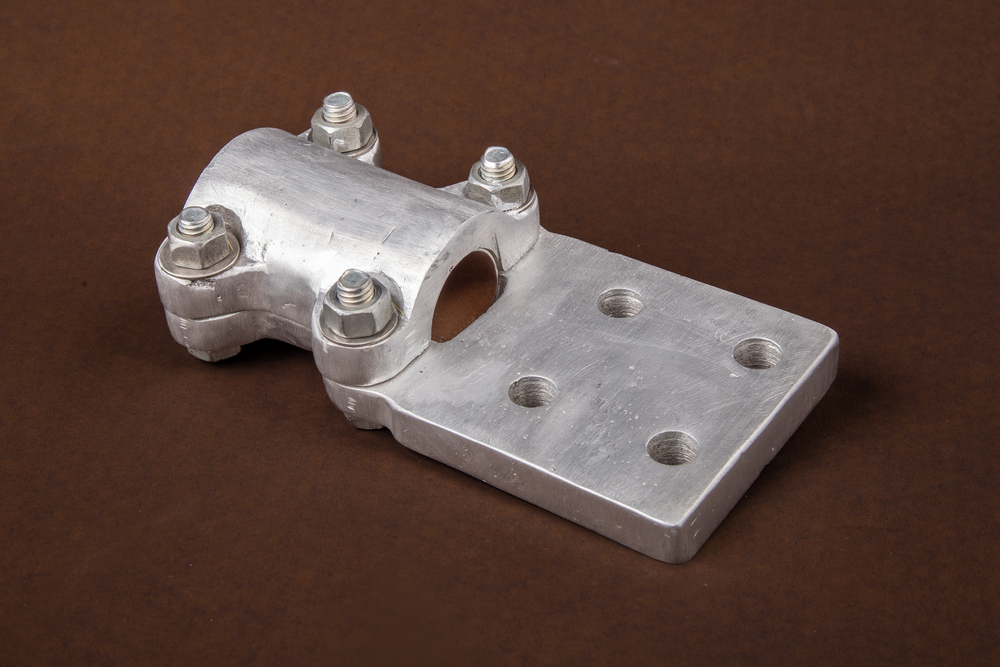

• Capacity
• Designed for Zebra ACSR conductor (54/7 x 3.18 mm)

• Dimension (L*W*H)
• Approx. 150 mm x 90 mm x 70 mm (varies by manufacturer)

• Efficiency
• N/A (Mechanical Connector)

• High Voltage
• Depends on installation system (typically up to 132 kV or more)

• Material
• High Strength Aluminium Alloy

• Operating Temperature
• -10C to +50C

• Phase
• Other, Suitable for Single or Three Phase Connections

• Power Scope
• Up to 400kV (depends on system design)

• Product Type
• Other, 12 Bolted Type VCB Clamp for Zebra Conductor

• Rated Voltage
• Up to 33 kV - 400 kV (as per application)

• Standard
• IS 5561 / IEC Standard

• Usage
• Used for connecting and securing Zebra (ACSR) conductors to circuit breakers or busbars in substations and switchgear systems

• Weight
• Around 1.5 - 2.0 kg (approximate, varies with manufacturer)

• Capacity
• Up to 10A

• Coil Material
• Other , Copper winding

• Coil Number
• Other, Single/Multiple options

• Coil Structure
• Other, Encapsulated, Horizontal configuration

• Cooling Type
• Air-cooled, ambient dissipation

• Dimension (L*W*H)
• 63 mm x 34 mm x 30 mm (approx.)

• Efficiency
• >95%

• Frequency (MHz)
• 50-60

• High Voltage
• Insulation withstands up to 3 kV AC

• Load Loss
• <1.2 W

• Low Voltage
• Compatible with standard LV control circuits

• Material
• High-grade Aluminum Alloy and Insulating Polymer

• Operating Temperature
• -20C to +80C

• Output
• Current Output for Metering/Protection

• Phase
• Other, Single/Three phase compatible

• Power Scope
• Up to 400V, industrial low-medium voltage range

• Product Type
• Other, 13 Horizontal CT Connector

• Rated Voltage
• 400 V

• Standard
• IEC 61869 / IS 2705 compliant

• Usage
• Electrical Current Transformation, Industrial Control Panels, Metering Applications

• Weight
• Approx. 75g

• Capacity
• Rated for 5 Amps per Pin

• Coil Structure
• Other, N/A (Not applicable for connectors)

• Cooling Type
• Passive / Natural Air Cooling

• Dimension (L*W*H)
• Approx. 32mm x 15mm x 20mm

• Efficiency
• High Conductivity, Low Resistance

• Frequency (MHz)
• DC to 50 MHz (Typical)

• High Voltage
• Withstands up to 500V (Dielectric Strength)

• Load Loss
• Negligible / Minimal

• Low Voltage
• Minimum operating 1V

• Material
• High-Grade Plastic and Metal Alloy

• Operating Temperature
• -40C to +105C

• Output
• Electrical signal/pathway interconnection

• Phase
• Other, Single phase / Multi-phase compatible

• Power Scope
• Low to Moderate Power Applications

• Product Type
• Other, 14 Pin Vertical CT Connector

• Rated Voltage
• Up to 250V AC/DC

• Standard
• Complies with RoHS and UL Standards

• Usage
• PCB Mounting / Electrical Interconnections

• Weight
• Approx. 20 grams

• Capacity
• Designed for 30 mm diameter Zebra Conductor (ACSR) as per IS:398 (Part-II)

• Cooling Type
• Air cooled (natural convection)

• Dimension (L*W*H)
• 110 mm x 70 mm x 60 mm (approximate values)

• Efficiency
• High efficiency for secure current transmission

• High Voltage
• Applicable to both high and extra high-voltage lines

• Load Loss
• Negligible load loss

• Material
• High conductivity aluminium alloy with copper liner

• Operating Temperature
• -40C to +50C

• Phase
• Other, Suitable for single- and three-phase transmission systems

• Power Scope
• High voltage power transmission

• Product Type
• Other, CT Clamp for Zebra Conductor

• Rated Voltage
• Up to 132 kV

• Standard
• IS:5561 / IEC-61238 or as per utility requirement

• Usage
• Used for connecting Current Transformer (CT) to Zebra Conductor in transmission lines

• Weight
• Approximately 550-600 grams (varies by manufacturer)

• Capacity
• Handles up to 16 mm diameter bushing

• Dimension (L*W*H)
• Approx. 85 mm x 35 mm x 40 mm

• Efficiency
• Not applicable (mechanical accessory)

• High Voltage
• Up to 16 kV

• Material
• High conductivity brass and aluminum

• Operating Temperature
• -10C to +80C

• Phase
• Other, Suitable for single and three-phase transformers

• Power Scope
• For use in medium voltage power transformers

• Product Type
• Other, Bushing Clamp Assembly

• Rated Voltage
• Up to 16 kV

• Standard
• IS 3347/IS 7421 compliant

• Usage
• Transformer bushing connection and termination

• Weight
• Approx. 150-250 grams

• Capacity
• Designed for DOG conductor capacity (Aluminium conductor steel reinforced (ACSR) up to 100 sq.mm).

• Coil Material
• Other , Not applicable.

• Coil Number
• Other, Not applicable.

• Coil Structure
• Other, Not applicable.

• Cooling Type
• Not required.

• Dimension (L*W*H)
• Approx. 150 mm x 70 mm x 60 mm (varies by manufacturer).

• Efficiency
• High, optimized for minimal transmission loss.

• Frequency (MHz)
• Not applicable (designed for power transmission applications, typically 50/60 Hz).

• High Voltage
• Up to 33,000 V.

• Load Loss
• Negligible, mechanical connector.

• Low Voltage
• Not applicable.

• Material
• High conductivity aluminium alloy with galvanized steel hardware.

• Operating Temperature
• -20C to +80C.

• Output
• Not applicable (mechanical fitting).

• Phase
• Other, Suitable for single and three phase systems.

• Power Scope
• Medium to High Voltage transmission lines.

• Product Type
• Other, CTPT Clamp for DOG Conductor.

• Rated Voltage
• Up to 33 kV (standard applications).

• Standard
• IS 5561/IEC 61238 or equivalent

• Usage
• Used for connecting CTPT (Current Transformer/ Potential Transformer) to DOG (Designated Overhead Ground) conductor in electrical transmission lines.

• Voltage Booster Type
• Other, Not applicable.

• Weight
• Approximately 0.7 - 1.5 kg (depending on specification).

• Capacity
• Matches transformer rating; typically up to 2000A

• Cooling Type
• Air-cooled, as per transformer cooling

• Dimension (L*W*H)
• Approx. 100mm x 40mm x 50mm

• Efficiency
• High Electrical Conductivity

• Frequency (MHz)
• 50/60 Hz (not strictly in MHz, but standard for transformers)

• High Voltage
• Up to 24 kV

• Load Loss
• Negligible, designed for low resistance

• Low Voltage
• Optionally available for 415/240V bushings

• Material
• Aluminum Alloy and Brass

• Operating Temperature
• -20C to +80C

• Output
• Conducts electrical output from transformer bushing

• Phase
• Other, Single & Three Phase compatible

• Power Scope
• Suitable for medium to large transformer load connections

• Product Type
• Other, Bushing Connector

• Rated Voltage
• Up to 24 kV

• Standard
• IEC 60137 / IS 3347 Compliant

• Usage
• Distribution Transformers, Electrical Connections

• Weight
• Approx. 300g - 700g (varies with size)

• Capacity
• Depends on conductor size and type

• Dimension (L*W*H)
• Approx. 18 mm diameter, length varies

• Efficiency
• High conductive efficiency

• High Voltage
• Up to 33 kV

• Load Loss
• Negligible

• Material
• Aluminium

• Operating Temperature
• -20C to 80C

• Product Type
• Other, Jointing Sleeve

• Rated Voltage
• Up to 33 kV (typical application rating)

• Standard
• IS 2129 or equivalent

• Usage
• Used for connecting or jointing two conductors in electrical transmission lines.

• Weight
• Approx. 100-200 grams (varies with sleeve size)

• Capacity
• Suitable for DOG Conductor (Aluminium Conductor Steel Reinforced, typically 100-150 sq. mm)

• Dimension (L*W*H)
• Approx. 85mm x 45mm x 30mm (varies by design)

• Efficiency
• High electrical and mechanical efficiency

• High Voltage
• Up to 33 kV

• Load Loss
• Negligible

• Material
• High strength Aluminium Alloy

• Operating Temperature
• -30C to +80C

• Phase
• Other, Suitable for Single and Three phase systems

• Power Scope
• Overhead Power Transmission Lines

• Product Type
• Other, PG (Parallel Groove) Clamp

• Rated Voltage
• Up to 33 kV

• Standard
• IS 5561 or as per utility specification

• Usage
• Used for connecting and clamping DOG (Drake Overhead Ground) ACSR conductors in electrical power lines

• Weight
• Approx. 200-400 grams (varies by manufacturer)

• Capacity
• Depends on cable size, typically up to 300 sq.mm

• Dimension (L*W*H)
• 50mm x 50mm (Pad Size), Length varies as per design

• Load Loss
• Negligible

• Low Voltage
• Yes

• Material
• High conductivity Aluminium

• Operating Temperature
• -20C to 80C

• Power Scope
• Suitable for low and medium voltage applications

• Product Type
• Other, Pad Clamp (Lug type)

• Rated Voltage
• Up to 1.1 kV (Typical for this application)

• Standard
• IS 8309 / IEC 61238-1

• Usage
• Power distribution, Electrical panel connections, Termination of electrical conductors

• Weight
• Approx. 120 grams

• Capacity
• Designed for Zebra ACSR conductor (54/7; 400mm2)

• Dimension (L*W*H)
• Approx. 160mm x 100mm x 80mm (varies by design)

• Efficiency
• High mechanical and electrical reliability

• High Voltage
• Up to 400 kV

• Load Loss
• Negligible/conductive part only

• Material
• High-strength aluminium alloy

• Operating Temperature
• -20C to +85C

• Power Scope
• Suitable for high voltage and extra high voltage

• Product Type
• Other, Bolted Type Pad Clamp

• Rated Voltage
• Up to 400 kV (dependent on application)

• Standard
• IS 5561 / IEC 61284

• Usage
• Used to connect or secure Zebra conductors to electrical equipment such as transformers or circuit breakers in substations and transmission lines

• Weight
• Approx. 1.5 - 2.5 kg (depending on manufacturer)

• Capacity
• Designed for 400 mm2 (Zebra) ACSR conductors

• Cooling Type
• Natural air cooled (passive)

• Dimension (L*W*H)
• Approx. 130 mm x 80 mm x 40 mm (may vary by manufacturer)

• Efficiency
• High mechanical and electrical efficiency for secure conductor connection

• High Voltage
• Suitable up to 33 kV

• Load Loss
• Negligible

• Material
• High strength aluminium alloy

• Operating Temperature
• -10C to +80C

• Product Type
• Other, Pad Clamp for Zebra Conductor

• Rated Voltage
• Up to 33 kV (typical for Zebra conductor applications)

• Standard
• IS or IEC standards for transmission fittings

• Usage
• Used for clamping Zebra conductors in electrical transmission lines and substations

• Weight
• Approximately 300-500 grams (varies with manufacturer)

• Capacity
• Suitable for cable sizes from 16mm2 to 240mm2

• Cooling Type
• Self-cooled

• Dimension (L*W*H)
• Typically 80mm x 52mm x 42mm (customized as per size)

• Efficiency
• High mechanical strength and conductivity

• High Voltage
• Up to 33kV

• Load Loss
• Minimal

• Low Voltage
• Applicable for LV lines as well

• Material
• High conductivity aluminum alloy

• Operating Temperature
• -30C to +80C

• Power Scope
• Suitable for LV and HV distribution lines

• Product Type
• Other, Bolted PG (Parallel Groove) Clamp

• Rated Voltage
• Up to 33kV

• Standard
• IS 5561, IEC 61238, BS 3288

• Usage
• Used for connecting two conductors in parallel on overhead transmission and distribution lines

• Weight
• Varies by size, typically 350g-800g per clamp

• Capacity
• Fits 23T conductor size

• Dimension (L*W*H)
• Approx 120mm x 70mm x 30mm

• Low Voltage
• Supported

• Material
• Aluminum

• Operating Temperature
• -40C to +85C

• Power Scope
• Low to medium voltage applications

• Product Type
• Other, 23T Crimping Type Connector

• Rated Voltage
• Up to 1 kV

• Standard
• IS: 5561, IEC 61238-1

• Usage
• Electrical cable joining and connection

• Weight
• Approx 100-200 grams

• Capacity
• Suitable for Zebra (54/7) ACSR conductor

• Cooling Type
• Air cooled (ambient)

• Dimension (L*W*H)
• Approx. 120mm x 170mm x 30mm

• High Voltage
• Supports high voltage transmission lines

• Load Loss
• Negligible

• Material
• Aluminium alloy

• Operating Temperature
• -20C to +85C

• Power Scope
• High voltage overhead lines

• Product Type
• Other, T-Connector

• Rated Voltage
• Upto 400 kV

• Standard
• IS 5561/IEC 61284

• Usage
• Connecting Zebra conductors in transmission lines

• Weight
• Approx. 600 grams

• Capacity
• Suitable for line sizes up to 25 mm conductor diameter

• Dimension (L*W*H)
• Approx. 200 mm x 50 mm x 60 mm (dimensions may vary)

• High Voltage
• Applicable up to 33 kV

• Low Voltage
• Not typically used for LV applications

• Material
• High strength aluminum alloy or galvanized steel

• Operating Temperature
• -20C to +70C

• Power Scope
• Applicable for overhead transmission and distribution lines

• Product Type
• Other, Bolted Type 25 Two Hole Isolator Clamp

• Rated Voltage
• Up to 33 kV (typically used at medium voltages)

• Standard
• IS 5561 or equivalent international standards for line hardware

• Usage
• Used for fixing or securing electrical isolators to support structures in power lines and substations

• Weight
• Approx. 1.2 kg (varies depending on model)

• Capacity
• Suitable for Dog Conductor size (approx. 100-120 sq.mm)

• Dimension (L*W*H)
• Approx. 170mm x 95mm x 40mm (varies by type)

• Efficiency
• High electrical contact efficiency

• High Voltage
• Up to 33kV

• Material
• High conductivity aluminum alloy

• Operating Temperature
• -10C to +55C

• Phase
• Other, Suitable for single and three-phase systems

• Power Scope
• Medium voltage applications

• Product Type
• Other, Pad Clamp for Dog Conductor

• Rated Voltage
• Up to 33kV

• Standard
• IS 5561, IS 2633, IS 2099 or as per customer specification

• Usage
• Used for connecting Dog Conductor to VCB terminal pads in electrical substations and switchgear

• Weight
• Approx. 450-600g (varies by manufacturer)

• Capacity
• Suitable for Dog Conductor (100 to 120 mm2)

• Dimension (L*W*H)
• Approx. 60mm x 45mm x 30mm

• High Voltage
• Up to 33 kV

• Load Loss
• Negligible

• Material
• High conductivity aluminium alloy

• Operating Temperature
• -20C to +85C

• Output
• Secure electrical connection

• Power Scope
• Medium to High Voltage transmission lines

• Product Type
• Other, Wedge Connector

• Rated Voltage
• Up to 33 kV

• Standard
• IS: 5561 or equivalent

• Usage
• Electrical cable jointing for Dog Conductor

• Weight
• Approx. 200-300 g (may vary by manufacturer)

• Capacity
• Suitable for Panther (ACSR 21/3.00 mm + 18/2.50 mm) Conductor

• Cooling Type
• Air cooled (passive dissipation)

• Dimension (L*W*H)
• Approx. 55 mm x 50 mm x 18 mm

• Efficiency
• Greater than 99% electrical contact efficiency

• High Voltage
• Suitable for high voltage conductor jointing

• Load Loss
• Minimal, less than 1% at rated currents

• Low Voltage
• Not recommended

• Material
• High conductivity aluminum alloy

• Operating Temperature
• -20C to +85C

• Power Scope
• Suitable for medium and high voltage lines

• Product Type
• Other, Wedge Connector

• Rated Voltage
• Up to 33kV

• Standard
• IS 5561, IEC 61238-1

• Usage
• Electrical power transmission and distribution for connecting panther conductors

• Weight
• Approx. 250 - 350 grams

• Dimension (L*W*H)
• 330 mm (Length)

• Material
• Brass

• Operating Temperature
• Up to 120C (estimated for brass parts)

• Product Type
• Other, Brass Sleeve for CT

• Standard
• As per IS/IEC standards for CT fittings

• Usage
• Current Transformer (CT) Sleeve

• Weight
• Approx. 120-180 g (depending on thickness)
